NiTi • Nitinol Shape Memory Alloy Foil; 0.3mm thick; Af 50°C

  • $ 3.30


Nitinol Shape Memory Foil - 0.3 mm


In stock ready for shipping worldwide today.

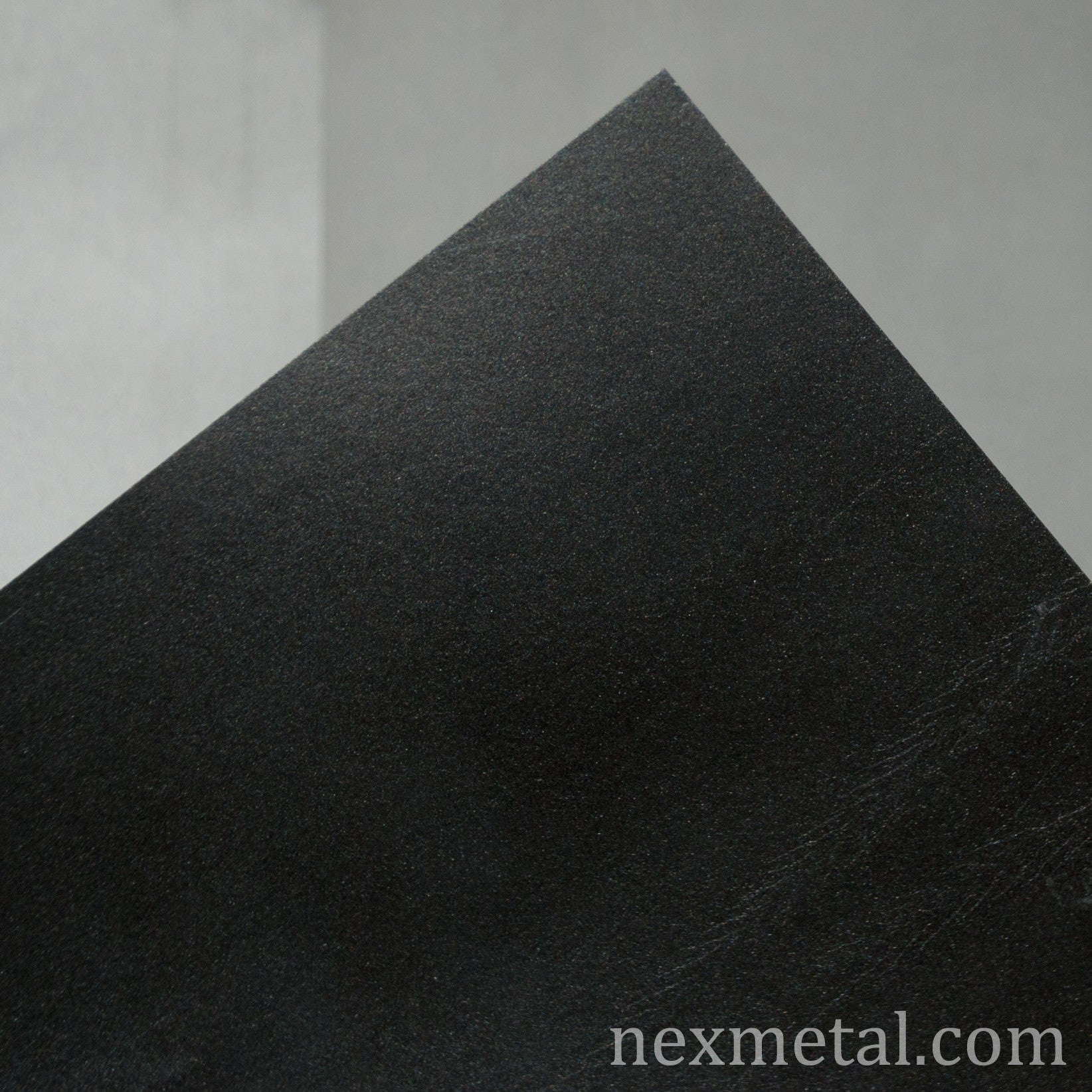

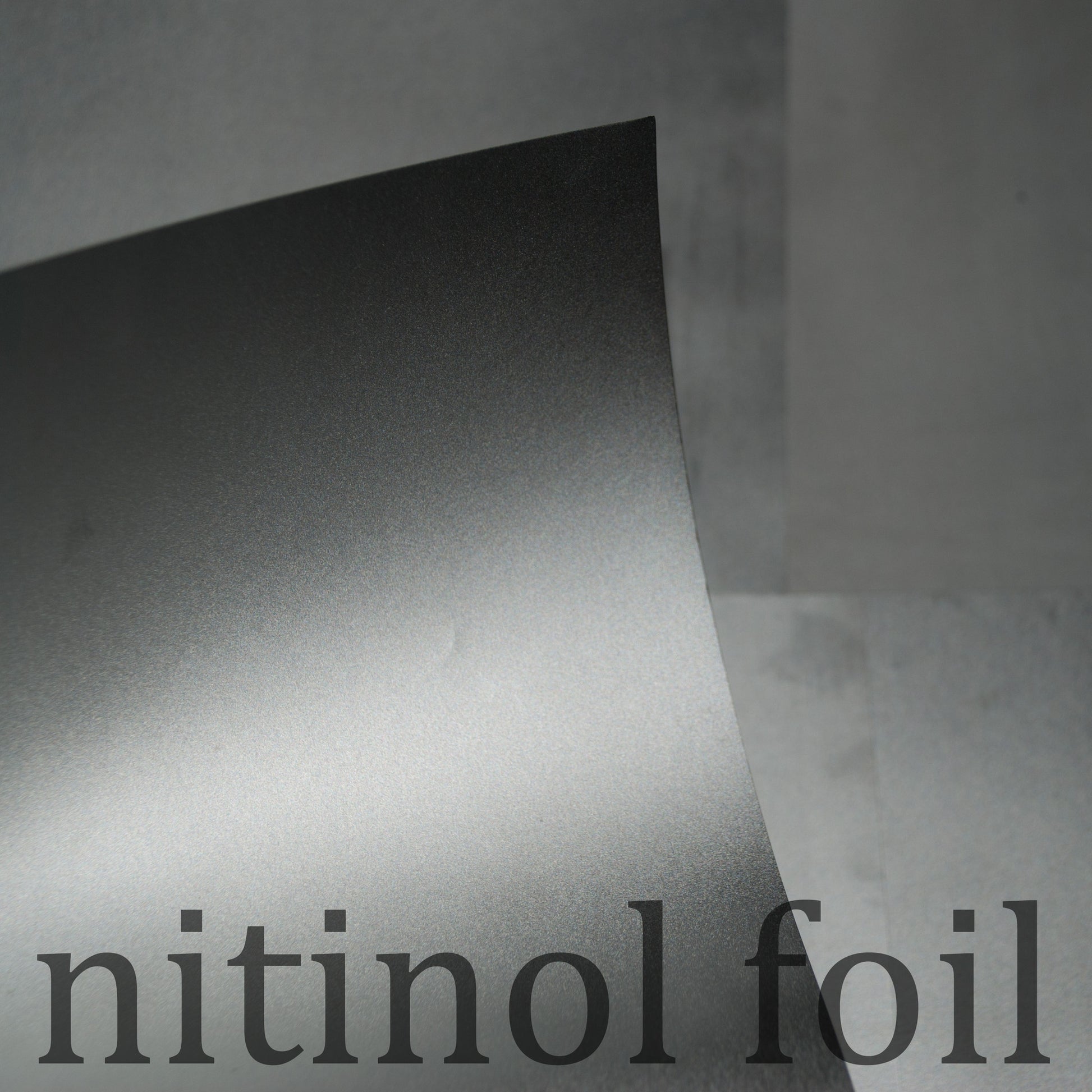

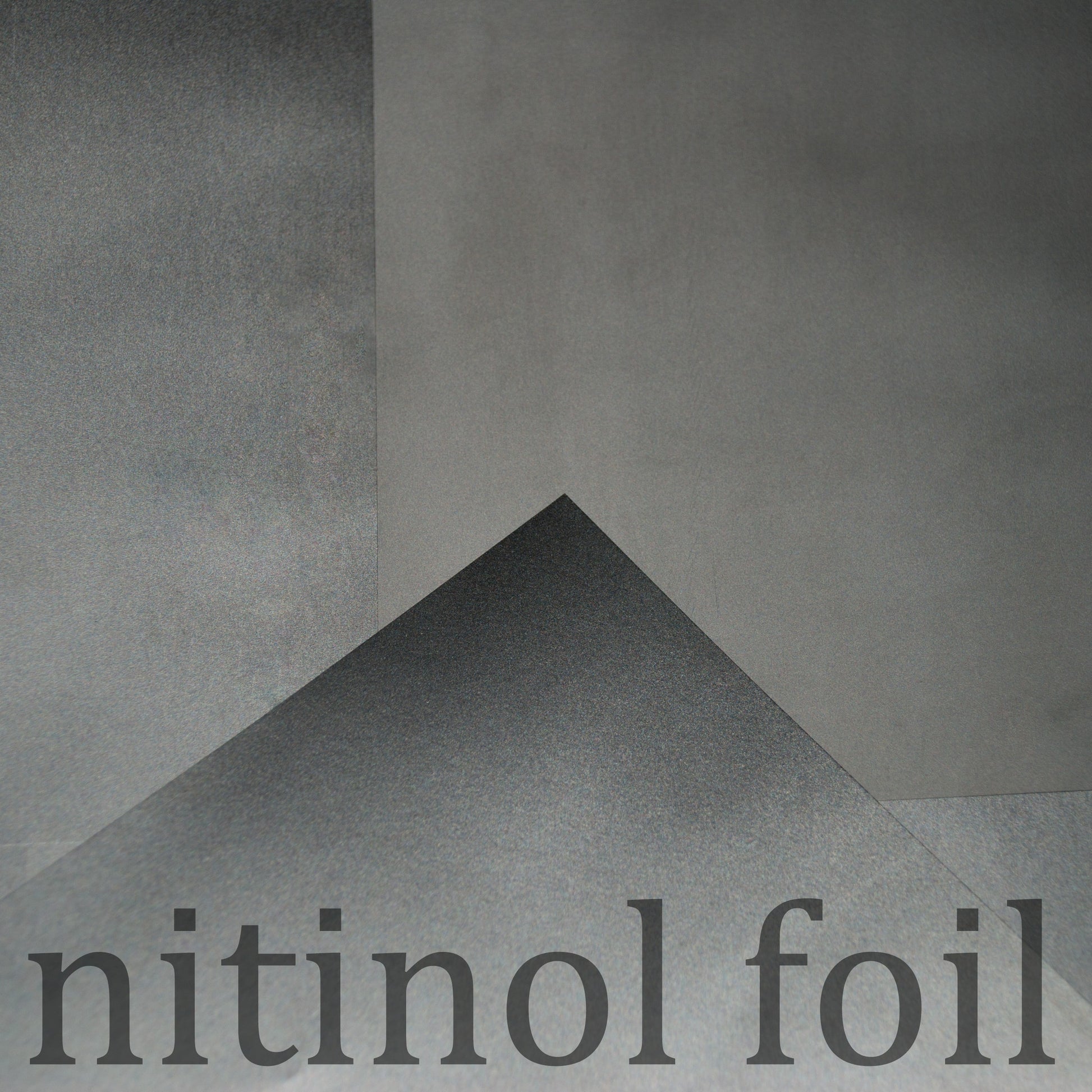

Memory foil, 0.3mm thick. This sheet can be bent and remains bent at room temperatures and below, and returns to its memorized shape (flat if you do not post-treat it).

Maximum sheet size is 31.5 x 7.5 inches ( 80 x 19 cm). Full sheet weighs 300 grams.


The video below is a demonstration of a similar sheet but thinner (0.1mm).

1x2 and 2x2 inch nitinol foil sheets, activated using hot water from the faucet.

Nitinol nickel titanium inter-metallic (superalloy) with a 50ºC phase transition temperature. The sheet is 0.3mm thick, maximum dimensions are 800mm • 190mm. It is priced per square inch.

The foil is very strong and puncture resistant. It will return to original / trained shape when heated to approx. 50°C or above. Heating past 100°C is not recommended or necessary unless you are setting a new shape, for which you would use a temperature range of 500-700°C.


Transition temp 50ºC. In stock. Simple ordering. Worldwide shipping.
