A longer version of our popular 16mm spring, Nitinol pre-trained 1-way memory helical/coil spring contracts and exerts force when heated to 45C. Once cooled to room temperature, the spring requires almost no resistance to stretch it. Recommended maximum expansion when cold: 300mm (excluding hooks).

Characteristics

This variant of the NiTi spring contracts when heated and can be mechanically expanded when cooled with little resistance.

• Spring wire gauge: 0.75 mm
• Spring OD: 6.5 mm ( 5.0mm mandrel )

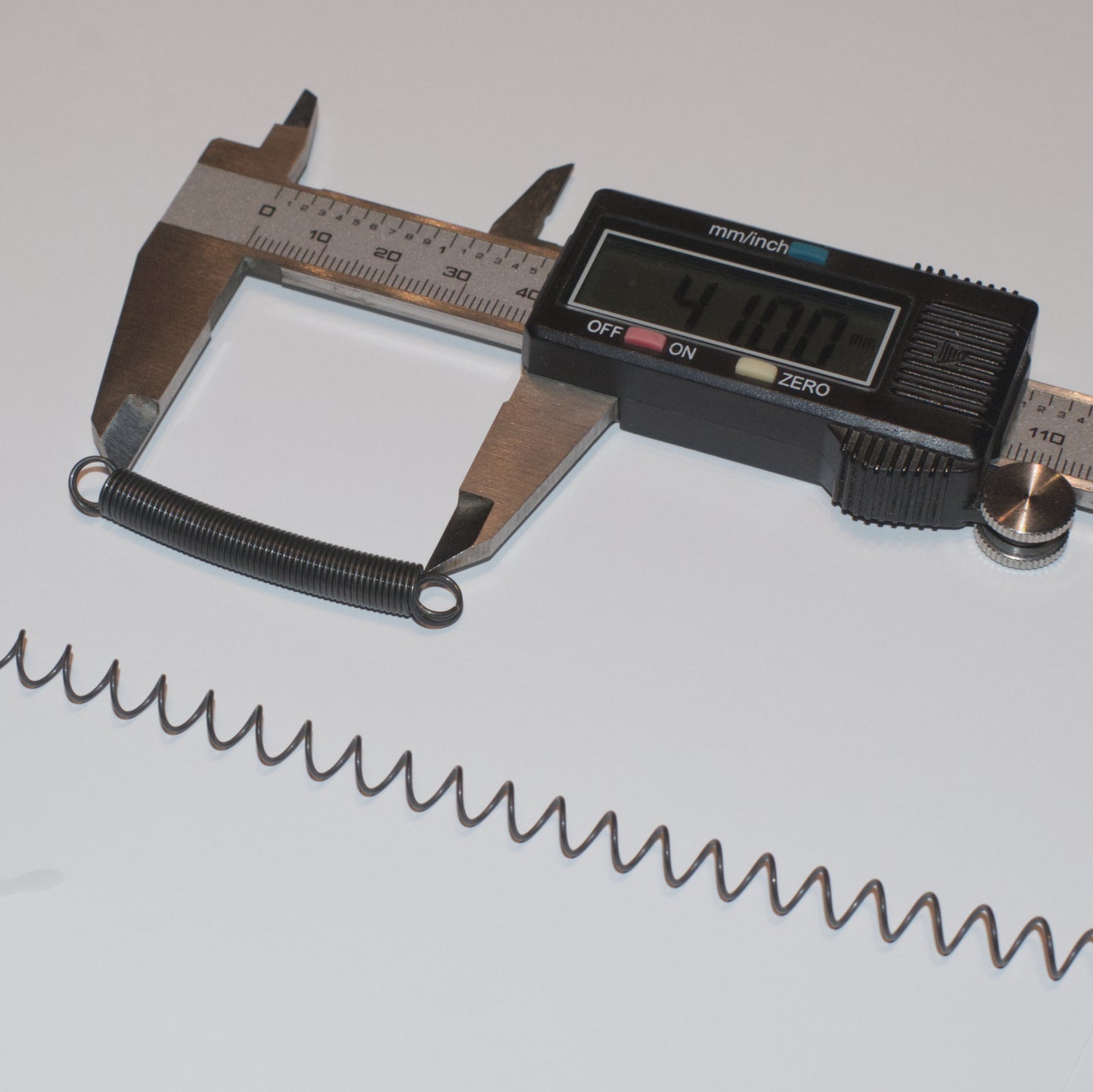

• Fully contracted ( hot ) length: 41 mm
• Fully extended ( cold ) length: up to 300 mm
• Weight: 3.1 grams
